Configuration Options :: Faceplate Options
Everything in a rack hangs off a faceplate.

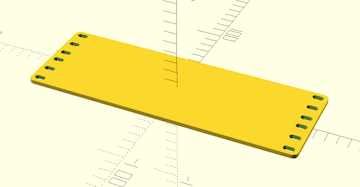

faceplate only
CageMaker PRCG can generate faceplates without a cage to hold a device, which is helpful for creating "blanks" or customized cageless faceplates to hold things like cooling fans or connectors. Since CageMaker PRCG normally determines heights automatically based on the size of the device, this setting instructs CageMaker PRCG to generate a faceplate without a cage and manually sets the height to the given number of units.
When using this option along with faceplate modifications, keep in mind that the left and right side faceplate modifications CageMaker PRCG generates are not horizontally centered on the faceplate. Instead, use the centered mod type option to center a modification on the faceplate.
Creating a cageless faceplate will naturally disable all cage-centric options.

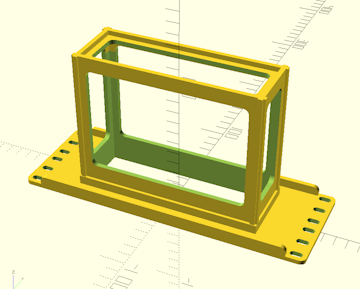

reinforce faceplate
This setting enables the addition of right-angle reinforcing ribs along the top and bottom of the back side of the faceplate, above and below the cage. This stiffens the faceplate against rotational forces from the cantilevering effect of suspending a weight out from a flat plane. When the cage is a partial width, the ribs will extend from the folded ears to form a box-like structure.
While CageMaker PRCG does automatically position the reinforcing ribs to clear rack rails and avoid hardware on bolt-together ears on partial-width cages, there may be interference issues that require some modifications such as trimming for fastener clearance.

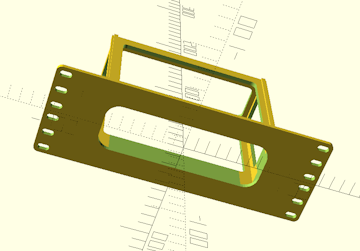

faceplate rounded corners
Since some devices have rounded corners, this option instructs CageMaker PRCG to round the corners of the faceplate opening. The ventilation opening in the bottom of the cage is also reduced in size so that the bottom edges of the device will be supported.
Use a radius gauge to determine the proper setting for this option, as an incorrect setting could produce an initially unusable cage that requires modification.
This only affects the faceplate - it does not round the inside corners of the cage proper. It may be necessary to enable the extra support option and/or set the cage bottom geometry option to solid to more fully support the device depending on how it is shaped.

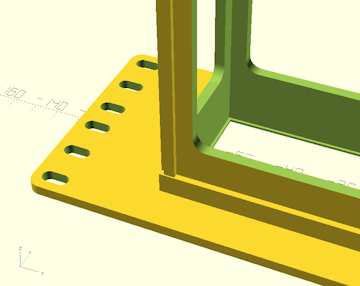

add retention lip
When this setting is enabled, CageMaker PRCG will generate a 1mm "lip" around the perimeter of the faceplate to act as a retainer for the device in the cage. This should produce a tight friction fit during insertion, and help hold the device in the cage. To compensate for this, the cage will be generated 1mm deeper and the device recessed into the cage accordingly.

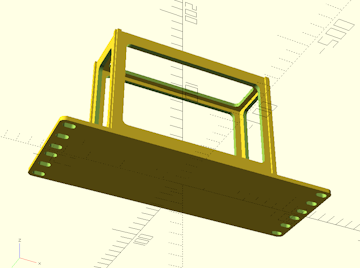

closed faceplate
new for version 0.7 :: In cases where it might be necessary or desirable to have a cage that is not open at the front, such as an enclosure for an electronic project whose internals are accessed through an open cage top, this option allows for disabling generating a device cutout through the faceplate.
Enabling this option also enables using a centered faceplate modification with a cage, but also disables overlap checking of faceplate modifications with the cage proper. Care must be taken to avoid positioning faceplate modifications where they will cut into the sides of the cage.

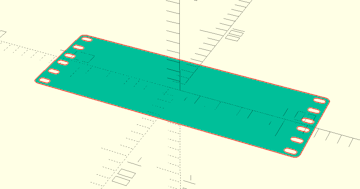

reduce faceplate to 2d
Reduces a cageless faceplate to a 2D object for export. (OpenSCAD can export 2D objects to SVG, DXF, PDF, and CSG.) Ideal for creating a 2D pattern for engraving or laser-cutting.
This option can only be enabled when the faceplate only option is set to generate a cageless faceplate. After rendering a completed faceplate with this option enabled, use "File" menu > "Export" in OpenSCAD to export the resulting faceplate to a 2D-file format.

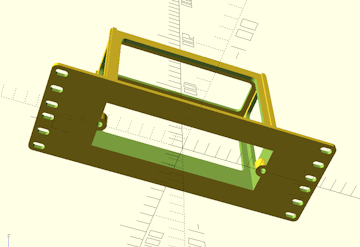

narrow edge centered holes
Some subrack systems employ additional screws to retain modules in special rack cages. This setting enables the generation of the corresponding screw holes along the narrower edges of the cage's faceplate opening. The holes are aligned with the edges of the faceplate opening and automatically include tabs that protrude into the opening.
Select the hardware size to suit the hardware to be used to secure the subrack module. Hole and tab sizes are automatically scaled to suit.

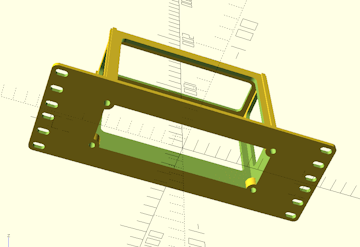

edge corner holes
Some subrack systems employ additional screws to retain modules in special rack cages. This setting enables the generation of the corresponding screw holes in each corner of the cage's faceplate opening. The holes are aligned with the edges of the faceplate opening and automatically include tabs that protrude into the opening.
Select the hardware size to suit the hardware to be used to secure the subrack module. Hole and tab sizes are automatically scaled to suit.

faceplate back standoffs
new for version 0.72 :: Place standoffs on the backside of the faceplate, using the coordinates (in mm) provided here where 0,0 is the dead-center of the faceplate.
This feature is not supported by the web-browser port of CageMaker PRCG running on OpenSCAD Playground, as OpenSCAD Playground does not support text entry. To use this feature, download and install OpenSCAD and run CageMaker PRCG within it.
Coordinates must be provided as a series of X and Y pairs separated by commas and enclosed in a set of brackets. For example, in the sample image at right the coordinates are as follows:
[10, 10, -10, 10, 10, -10, -10, -10]
The first pair of coordinates ("10, 10") place a standoff 10mm up and to the right of the center of the faceplate. The second pair of coordinates ("-10, 10") place a standoff 10mm up and to the LEFT of the center of the faceplate. Third pair is right and below center, and fourth is left and below center.
To add another standoff, simply add a comma after the last coordinate and add the next pair of coordinates. Please note that CageMaker PRCG does not check these for overlaps and will only seek to prevent any standoffs from being placed in mounting clearance areas.
Although CageMaker PRCG does not (as of this version) limit the number of standoffs, adding them takes compute time during rendering and increases the complexity and filament consumption of the resulting cage.
This feature requires that EITHER the faceplate only option be set to a height so that cage generation is disabled, OR closed faceplate option be enabled, or both. If neither is true, standoffs will not be generated.

faceplate back standoff height
new for version 0.72 :: Standoffs are generated as truncated cones with tapered sides for strength. This setting selects the standoff's height (in millimeters) above the back surface of the faceplate.
This feature is only active when faceplate back standoffs contains at least one pair of usable coordinates.

faceplate back standoff screw holes
new for version 0.72 :: This setting determines the hole diameter at the center of faceplate standoffs, and by extension the outer diameter of each standoff, which is 2.5x the diameter of the hole size.
This feature is only active when faceplate back standoffs contains at least one pair of usable coordinates.

faceplate text
new for version 0.72 :: It is not uncommon to label things like connectors and receptacles on a faceplate. This setting places a recessed (sunken) string of text at a given set of coordinates. Any font that is installed on the computer and supported by OpenSCAD may be used, and when available, styles such as bold and italics can also be used. More than one string of text can be placed, each with its own settings for location, font, and size.
This feature is not supported by the web-browser port of CageMaker PRCG running on OpenSCAD Playground, as OpenSCAD Playground does not support text entry. To use this feature, download and install OpenSCAD and run CageMaker PRCG within it.
Strings of text and the parameters for their placement must be provided as a series of parameters separated by commas and enclosed in a set of brackets. For example, in the sample image at right the settings are as follows:
[0, 0, "FACEPLATE TEXT", "Liberation Sans:style=bold", 16]
The first two parameters are a X/Y pair of coordinates ("0, 0") in millimeters relative to the dead center of the faceplate. Text will also be centered both horizontally and vertically at these coordinates. The third parameter is the string of text to place. The fourth parameter is the name (and optionally, style) of the font to use to generate the text. The fifth parameter is the size of the text - please note that because OpenSCAD does not recognize any particular unit of measurement, getting the font size correct for any particular application or use may require experimentation as it does not precisely match millimeters or points
The above sequence of parameters can be repeated for additional strings, but be aware that CageMaker PRCG does not perform any checking on text and will allow overlaps and bad positioning. To add another string, simply place a comma after the font size and add the next set of parameters. An example:
[0, -10, "FIRST LINE", "Liberation Sans:style=italics", 16, 0, 10, "SECOND LINE", "Liberation Sans", 16]
For more details on fonts, text strings, sizing, and how to determine what fonts are available, consult the OpenSCAD documentation for the text() command.
Although CageMaker PRCG does not (as of this version) limit the number of text strings, adding them takes compute time during rendering and increases the complexity and filament consumption of the resulting cage.
This feature creates text that is recessed approximately 0.5mm into the front surface of the faceplate. For improved visiblity it may be advisable to fill in the font with a suitable paint in a contrasting color.
As of this version, CageMaker PRCG does not directly support generating cages for multicolor printing, as OpenSCAD does not provide the functionality needed to make this practical. This may be added at a later date if a suitable workaround is found.

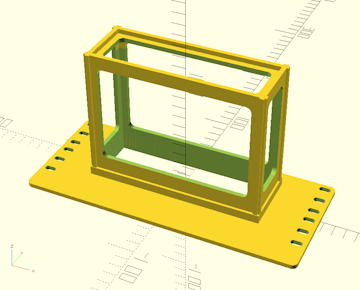

expand faceplate upward
new for version 0.7 :: Expands the faceplate upward a given distance (in mm) without adding more holes. Useful for rare situations where a rack has unit space that overlaps structures such as reinforcing bars.
The cage generator will not consider this extra space to be usable and will pretend it does not exist. It cannot be used for extra space for cage offsets, modifications, etc.
The additional space will not receive additional mounting holes unless the vertically shift mounting holes option is used, in which case the faceplate generator will place additional holes into this space as it shifts hole positions.
This should only be used when and where needed as it will cause fitment issues with the space above where this cage is mounted.

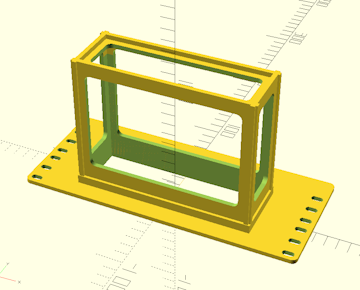

expand faceplate downward
new for version 0.7 :: Expands the faceplate downward a given distance (in mm) without adding more holes. Useful for rare situations where a rack has unit space that overlaps structures such as reinforcing bars, which may be common in some rack systems such as Homeracker.
Setting this to 14.5 will emulate Homeracker's "flush to bottom" functionality.
The cage generator will not consider this extra space to be usable and will pretend it does not exist. It cannot be used for extra space for cage offsets, modifications, etc.
The additional space will not receive additional mounting holes unless the vertically shift mounting holes option is used, in which case the faceplate generator will place additional holes into this space as it shifts hole positions.
This should only be used when and where needed as it will cause fitment issues with the space above where this cage is mounted.
