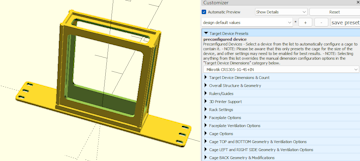

Configuration Options :: Target Device Presets

The easiest custom rack generation ever - pick a device from a list and immediately get a ready-to-render basic cage for mounting that device into a 10" rack without requiring any additional work.

As of version 0.70, dimensions and basic settings for the following devices are available as presets:

Routers/Gateways

• Mikrotik CRS309-1G-8S+IN

• Mikrotik hEX Series (EXCEPT PoE)

• Mikrotik hEX PoE

• Mikrotik RB4011iGS+RM

• SonicWall TZ Series (Smaller Desktop)

• SonicWall TZ570/TX670 (Larger Desktop)

• TP-Link Omada ER605

• TP-Link Omada ER7206 (1U Ultra-Compact)

• Ubiquiti UniFi EdgeRouter 4

• Ubiquiti UniFi EdgeRouter X SFP

• Ubiquiti UniFi Express 7 (NOTE: Forces solid cage bottom!)

• Ubiquiti UniFi UCG Fiber (NOTE: Forces solid cage bottom!)

• Ubiquiti UniFi UCG Max/Ultra (NOTE: Forces solid cage bottom!)

• Ubiquiti UniFi UISP Router

5-Port Switches

• D-Link DES-105

• D-Link DGS-105

• D-Link DGS-105GL

• D-Link DMS-105

• Netgear GS105

• Netgear GS105E v2

• Netgear GS105PE

• Netgear GS305

• Linksys SE3005 v1

• Linksys SE3005 v2

• TP-Link LS105G

• TP-Link LS1005G

• TP-Link Omada T-ES206X-M2

• TP-Link SG105S/SG105MPE

8-Port Switches

• Cudy GS108

• D-Link DES-108

• D-Link DGS-108

• D-Link DGS-108GL

• D-Link DMS-108

• Linksys SE3008 v1

• Linksys SE3008 v2

• Netgear GS108

• Netgear GS108E v3

• Netgear GS308LP/GS308PP

• Netgear GS308

• TP-Link LS108G

• TP-Link LS1008G

• TP-Link Omada ES210X-M2

• TrendNET TEG-S381

• TrendNET TEG-S82g

• UniFi UISP Switch

• UniFi US-8-150W

• Zyxel GS1100-10HP

12-16-Port Switches

• Zyxel GS1100-16

SFP Switches

• Mikrotik CRS305-1G-4S+IN

• TrendNET TEG-S5 Series

• Ubiquiti UniFi UISP Switch Plus

Small Form Factor PCs

• Apple MAC Mini M4+ (NOTE: Forces solid cage bottom!)

• Apple MAC Studio M3+ (NOTE: Forces solid cage bottom!)

• Dell OptiPlex USFF Chassis

• Dell OptiPlex M (Micro) Chassis (1U Ultra-Compact)

• HP Elite/Pro G3/G6/G9 Mini Chassis (1U Ultra-Compact)

• HP Z2 G9 Mini Chassis

• Intel NUC Pro Chassis

• Intel NUC Slim Chassis

• Intel NUC Tall/Dual-LAN Chassis

• Lenovo ThinkCentre Tiny (1U Ultra-Compact)

• Minisforum MS-01/MS-A2/MS-R1

• Minisforum MS-A1

Miscellaneous

• 2.5-Inch Drive Bay (Horizontal or Vertical)

• 2.5-Inch Half-Height Drive Bay (Horizontal or Vertical)

• 3.5-Inch Drive Bay (Horizontal or Vertical)

• E1.S-9.5mm (Enterprise SSD) Drive Bay (Horizontal or Vertical)

• E1.S-15mm (Enterprise SSD) Drive Bay (Horizontal or Vertical)

• E1.S-25mm (Enterprise SSD) Drive Bay (Horizontal or Vertical)

• E1.L-9.5mm (Enterprise SSD) Drive Bay (Horizontal or Vertical)

• E1.L-18mm (Enterprise SSD) Drive Bay (Horizontal or Vertical)

• E3.S (Enterprise SSD) Drive Bay (Horizontal or Vertical)

• E3.S-2T (Enterprise SSD) Drive Bay (Horizontal or Vertical)

• E3.L (Enterprise SSD) Drive Bay (Horizontal or Vertical)

• E3.L-2T (Enterprise SSD) Drive Bay (Horizontal or Vertical)
